Electronic Bell Setup Instructions: BB74

Setup:

1. Remove the plastic tab from the battery.

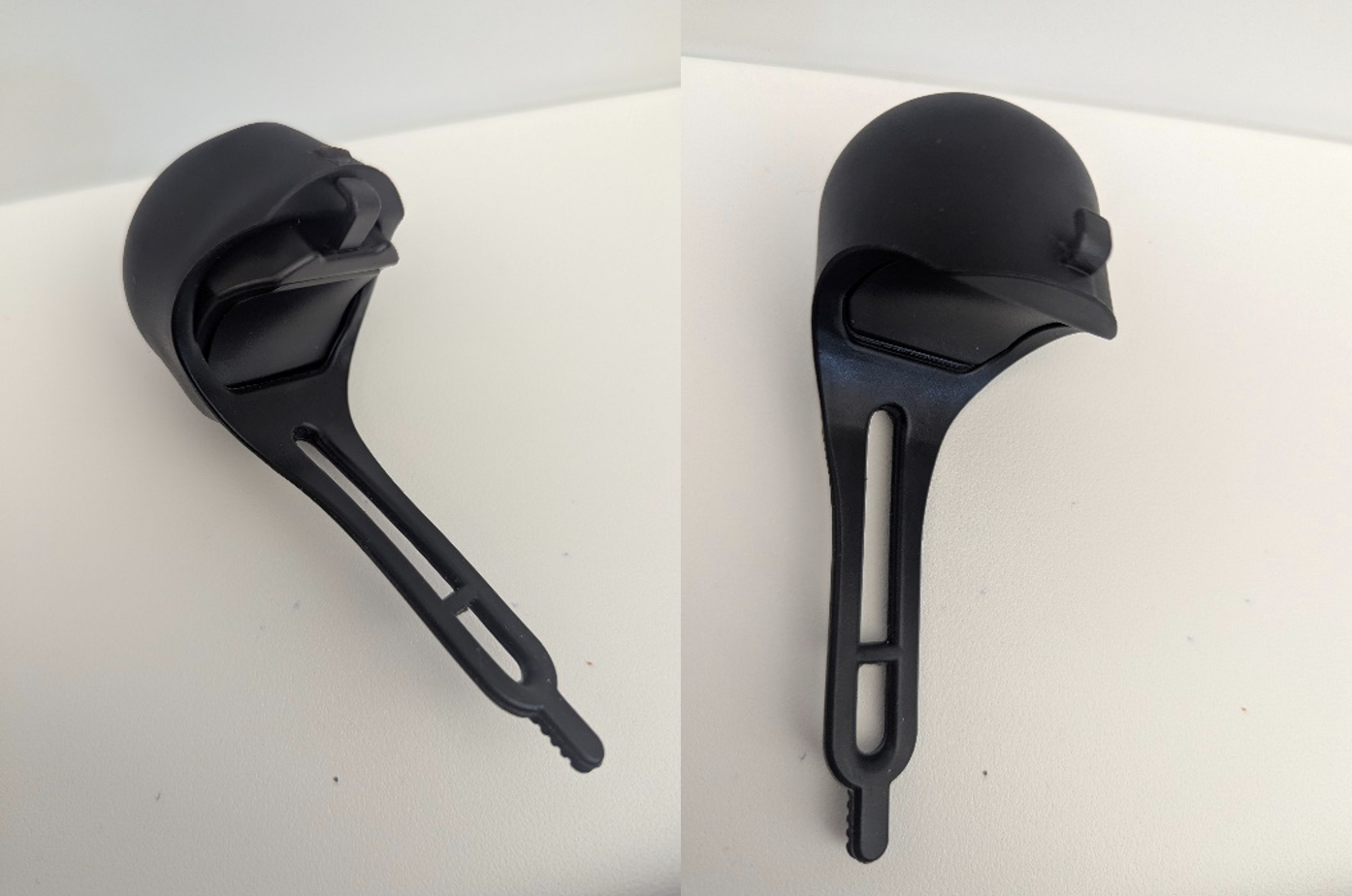

2. Unhook the strap from the bell.

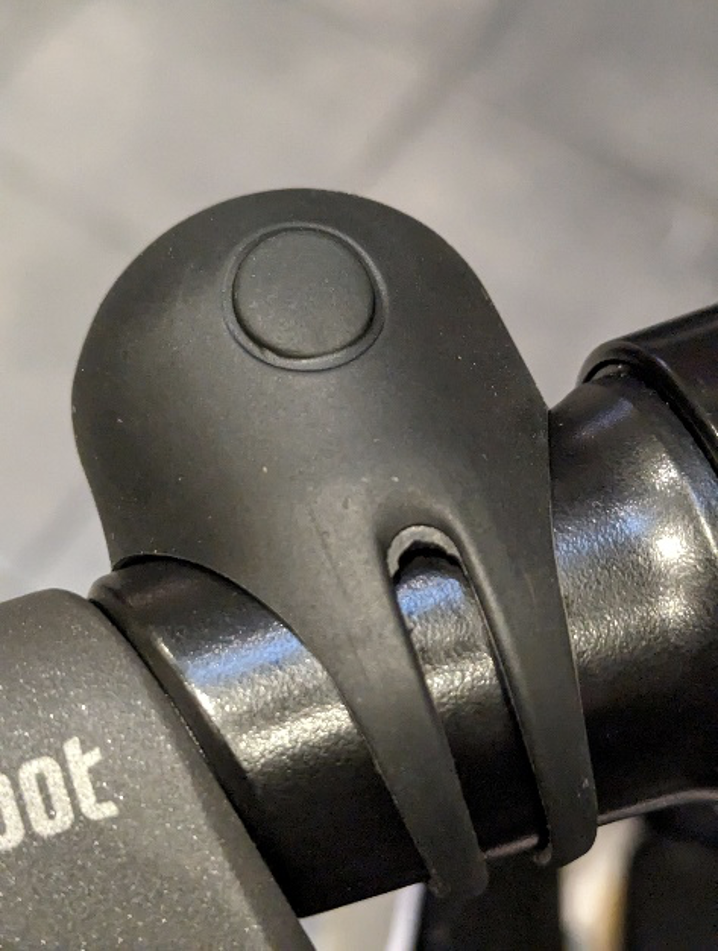

3. Wrap the strap around your handlebars and secure it with the hook.
4. Make sure the dotted pattern faces forward (toward the road), and the circular button is on top.

How to Use:

• Press the button quickly to ring the bell.
• The bell has 5 different sounds to choose from.
• To switch sounds, press and hold the button for 2 seconds.
• The sounds cycle in this order:
  1. Vintage Bike Bell
  2. Whistle
  3. Harmonica
  4. Train Whistle
  5. Car Horn
• The last sound you select will stay as the default until you change it again.

Changing the Batteries:

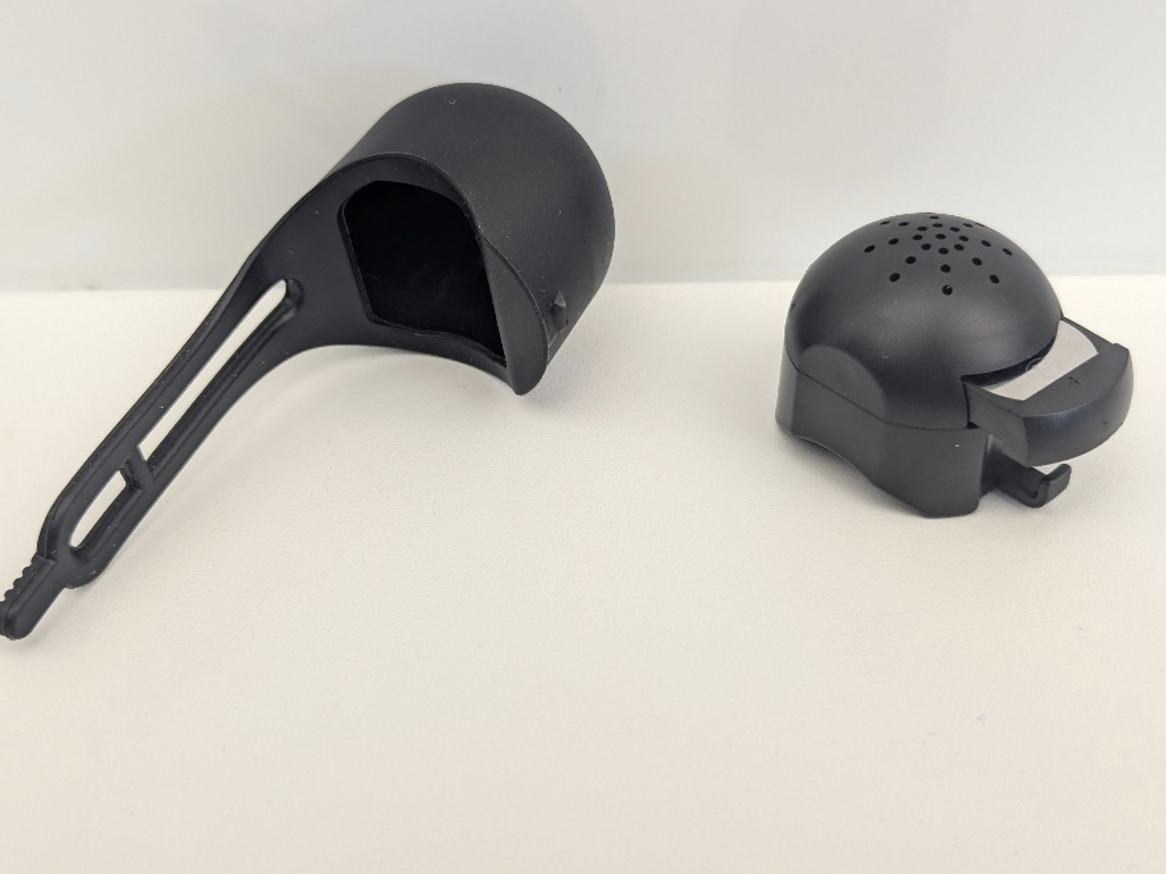

1. Peel back the cover from the hook side.

2. Pull out the battery tray using your fingernail.

3. Remove the old batteries.

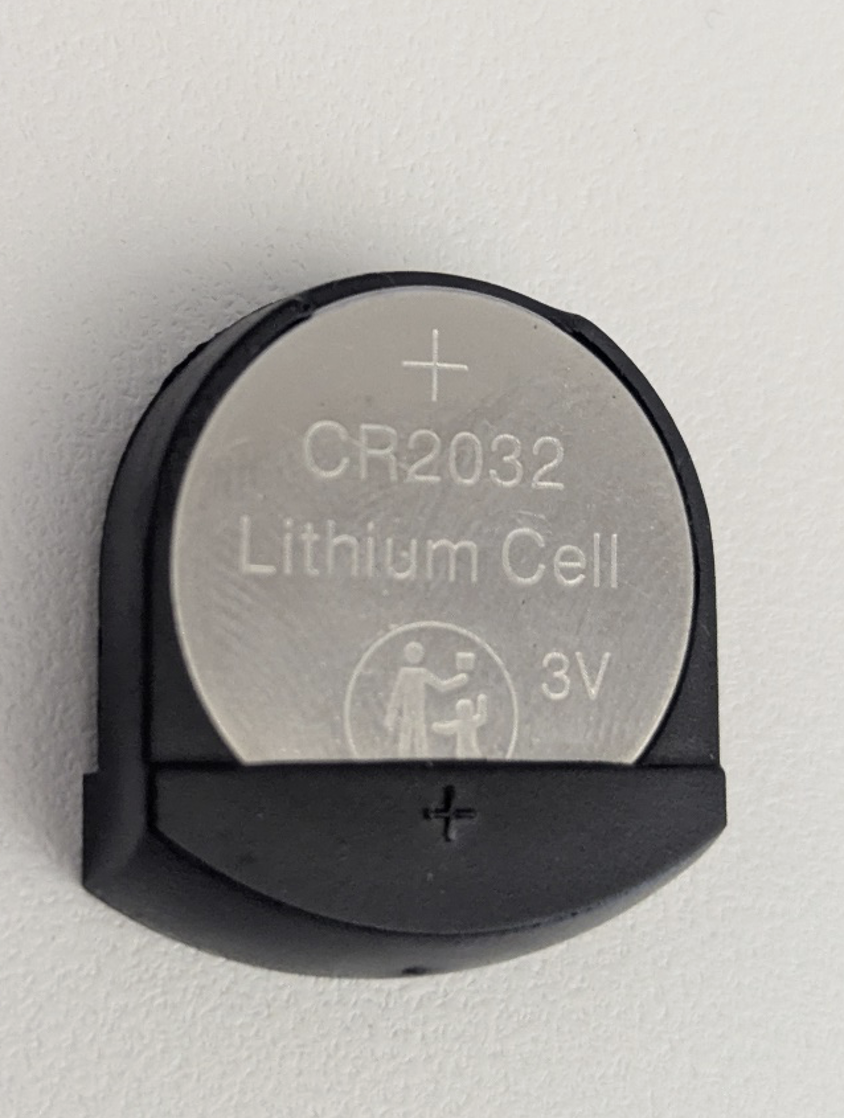

4. Insert two CR2032 button batteries, stacking them positive (+) side up.

5. Slide the tray back into place.

6. Press the housing back into the silicone cover.

7.Pull the hook through the opening in the cover.

8. Reattach the strap to your handlebars.

Weather Protection:

• The bell is IPX4 rated, meaning it's splash-proof and can handle light rain.
